About LFS Battery & ESS
LFS (lithium-free solid-state) batteries are a groundbreaking technology for energy storage devices, offering high specific energy density while preserving exceptional charging speed and unmatched safety-related characteristics.

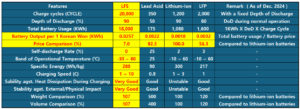

LFS vs. All Others
- High efficiency due to high discharge depth(90%)
- Long cycle life(20,000+ cycles)
- Low self discharge rate(0%/month)
- Wide operating temperature band(-30 ~ 80 ℃)
- High energy density comparable to ternary batteries
- Fast charging speed(Upto 10 C)
- No heat dissipation during charging/discharging
- Stable against external/physical shock
- Wider band of peak operating voltage(2.7 ~ 4.25V)

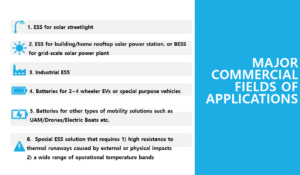

Major Commercial Applications
Modules and Packages
-
Specifications:
Cell: 4.2V 21A 88.2Wh
Module: 54 Cells
Standard Package: 5 kWh
Containerized Packaging(20’er BESS) : 2Mwh ~ 5Mwh
- ESS for 1.5 Ton EV: In this case, we showcase a battery pack designed for an electricity-powered boat. To equip the 1.5-ton electric boat with a 31.4 kWh battery pack, 22 modules are used, each capable of delivering 1,428 Wh of electrical energy. The overall packaging approach will differ based on the varying capacities of the cells for a specific application

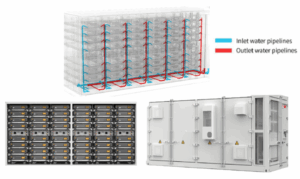

- Containerized BESS utilizing 20-foot containers for renewable energy power plants: 2 MWh configuration of BESS (expandable up to 5 MWh)

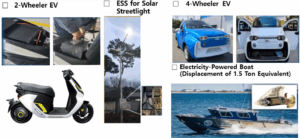

Selected Cases of Commercialization in the e-Mobility Sector
Battery Management Systems
- We offer flexible development capabilities and extensive experience tailored to various battery-operated environments
- Our focus is on providing economical and timely development solutions to our clients
-
We strive for optimal battery management by utilizing accurate data collection, analysis, and battery condition prediction, all of which are achieved through a combination of high-quality algorithms and sensor data.
